URB
Cantilever Bracket
Usage

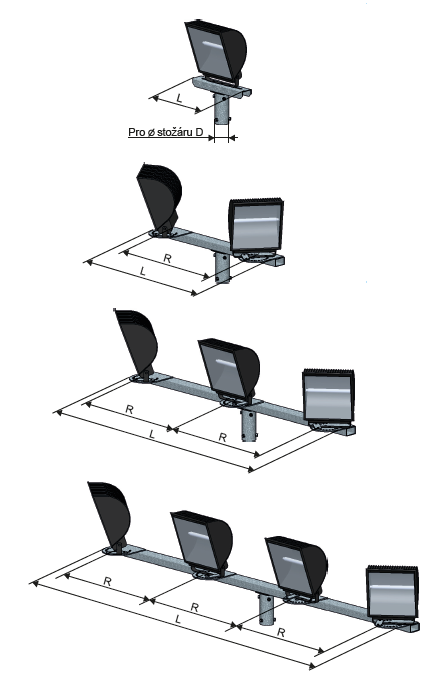

These cantilever brackets are designed for mounting 1 to 4 reflectors.
Surface Treatment
- Hot-dip galvanizing according to DIN EN ISO 1461
- Coatings according to the color shade tables of RAL
Design

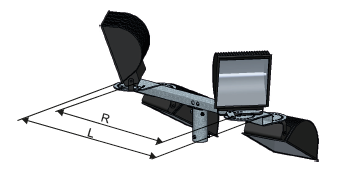

- URB series with rotation capability
- For reflectors - each up to a width of 600 mm and a weight of up to 30 kg.
Certification and Compliance
The product conforms to the set of standards ČSN EN 40 and meets the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
Customization options are available upon request.
Variants
| Kód | Cena | ||||||
|---|---|---|---|---|---|---|---|
| 12200-00480 | URB | 1/60 | 3,6 | 0,20 | 60 | 440 | |
| 12200-00481 | URB | 1/76 | 4,0 | 0,22 | 76 | 440 | |
| 12200-00482 | URB | 1/89 | 4,6 | 0,24 | 89 | 440 | |
| 12200-00483 | URB | 1/114 | 5,1 | 0,26 | 114 | 440 | |
| 12200-00484 | URB | 2/60 | 11,8 | 0,55 | 60 | 1000 | |
| 12200-00485 | URB | 2/76 | 12,3 | 0,57 | 76 | 1000 | |
| 12200-00486 | URB | 2/89 | 12,9 | 0,59 | 89 | 1000 | |
| 12200-00487 | URB | 2/114 | 13,3 | 0,61 | 114 | 1000 | |
| 12200-00488 | URB | 3/76 | 19,5 | 0,82 | 76 | 1800 | |
| 12200-00489 | URB | 3/89 | 20,0 | 0,84 | 89 | 1800 | |
| 12200-00490 | URB | 3/114 | 20,6 | 0,86 | 114 | 1800 | |
| 12200-00491 | URB | 4/89 | 31,9 | 1,13 | 89 | 2600 | |
| 12200-00492 | URB | 4/114 | 32,5 | 1,15 | 114 | 2600 | |
| 12200-00462 | URB | 4/89-900 | 18,1 | 0,80 | 89 | 1100 | |
| 12200-00461 | URB | 4/114-900 | 18,5 | 0,82 | 114 | 1100 |
