JZ, JZP, JZR
Wall-mounted Bracket
Usage
Installation on building walls, in areas where it is not possible to install a complete lighting pole for outdoor and indoor spaces.
Surface Treatment
- Hot-dip galvanizing according to DIN EN ISO 1461
- Hot-dip galvanizing with top coating according to RAL color shade tables

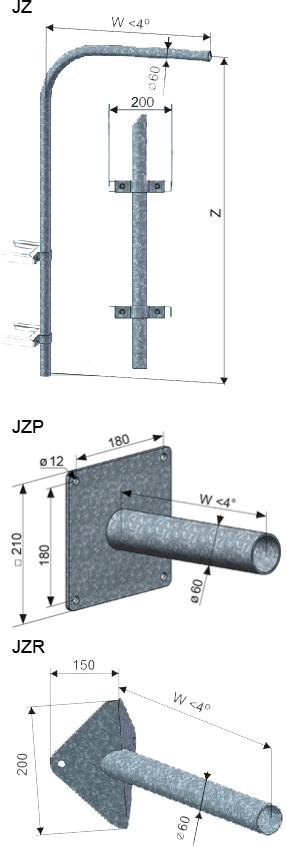

Design
- JZ - Arch bracket - requires ordering two clamps for mounting
- JZP - Flange bracket
- JZR - Corner flange bracket
Certification and Compliance
The product conforms to the set of standards ČSN EN 40 and meets the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
Customization options are available upon request.
Variants
| Kód | Cena | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 12200-00384 | JZ | 1 - 500 | 13,1 | 0,4 | 60 | 500 | 2050 | 80 | |
| 12200-00385 | JZ | 1 - 1000 | 15,8 | 0,5 | 60 | 1000 | 2050 | 80 | |
| 12200-00386 | JZ | 1 - 1500 | 18,3 | 0,6 | 60 | 1500 | 2050 | 50 | |
| 12200-00387 | JZ | 1 - 2000 | 20,9 | 0,7 | 60 | 2000 | 2050 | 50 | |
| 12200-00388 | JZ | 1 - 2500 | 23,5 | 0,8 | 60 | 2500 | 2050 | 35 | |
| 12200-00389 | JZ | 1 - 3000 | 26,1 | 0,9 | 60 | 3000 | 2050 | 35 | |
| 12200-00430 | JZ | třmen výložníku | 0,5 | 0,01 | |||||
| 12200-00390 | JZP | 1 - 300 | 2,6 | 0,18 | 60 | 300 | 80 | ||
| 12200-00391 | JZP | 1 - 500 | 3,5 | 0,21 | 60 | 500 | 80 | ||
| 12200-00392 | JZP | 1 - 1000 | 5,6 | 0,29 | 60 | 1000 | 50 | ||
| 12200-00393 | JZP | 1 - 1500 | 7,7 | 0,37 | 60 | 1500 | 50 | ||
| 12200-00395 | JZR | 1 - 300 | 2 | 0,18 | 60 | 300 | 80 | ||
| 12200-00396 | JZR | 1 - 500 | 3,2 | 0,21 | 60 | 500 | 80 | ||
| 12200-00397 | JZR | 1 - 1000 | 6,1 | 0,29 | 60 | 1000 | 50 | ||
| 12200-00398 | JZR | 1 - 1500 | 8,7 | 0,37 | 60 | 1500 | 50 |
