GD

Brackets for Lighting Poles

Types of Poles

GD brackets are used for GA, GL, GLA, GLB poles with a diameter of 76 mm.

Surface Treatment

• Hot-dip galvanizing according to DIN EN ISO 1461 standard
• Paint coatings according to the color shade of RAL color charts

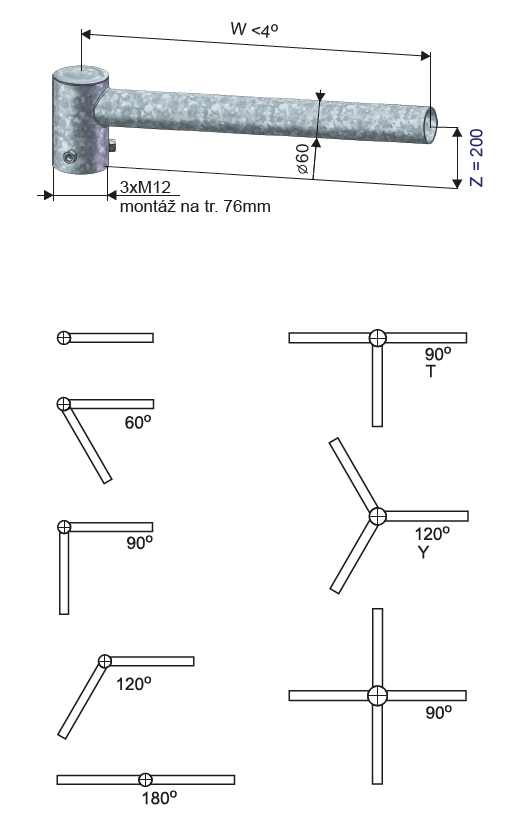

Design

• The bracket is a simple bracket that is mounted on the top section of the pole and fixed using 3 M12 screws.
• 1-4 arms, with the length of the bracket depending on the height of the pole.
• The bracket is supplied in a disassembled state, based on the length and angle of the bracket.

Certification and Compliance

The product corresponds to the set of standards ČSN EN 40 and meets the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015 standard.
