G

Brackets for Lighting Poles

Types of Poles

G brackets are used for GA, GL, GLA, and GLB poles.

Surface Treatment

• Hot-dip galvanizing according to DIN EN ISO 1461 standard
• Coatings according to the color shades in the RAL color charts

Design

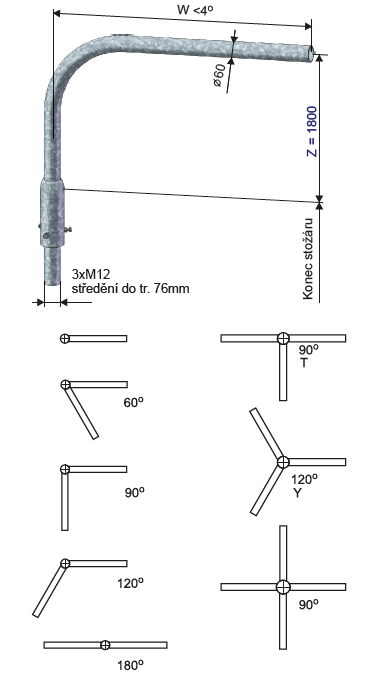

• The bracket is an arched bracket that is inserted inside the top section of the pole and fixed in the desired position using 3 M12 screws.
• Single-arm to four-arm bracket, with the length of the bracket depending on the height of the pole.
• The bracket is designed to be disassembled based on the length and angle of extension.

Certification and Compliance

The product complies with the set of standards ČSN EN 40 and meets the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to the EN ISO 9001:2015 standard.
