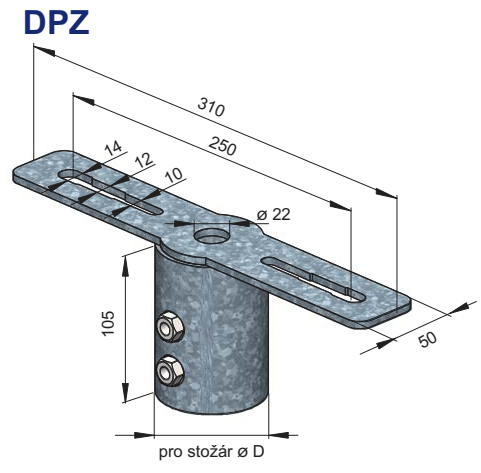

DPZ console
It is designed for adjustable mounting of a reflector to the bracket arm OK2, OK3.
Surface Treatment
- Hot-dip galvanizing according to DIN EN ISO 1461
- Hot-dip galvanizing with top coating according to RAL color tables
Design
- 3 pairs of holes for mounting standard reflectors
- Mounting on a 60mm diameter shaft
- Customization options available according to customer specifications
Certification and Compliance
The quality of the product is controlled according to EN ISO 9001:2015.
Variants
| Kód | Cena | |||||||
|---|---|---|---|---|---|---|---|---|
| 12200-00383 | DPZ | 1/60 | 1,1 | 0,08 | 60 | 310 | 50 | |
| 12200-00447 | DPZ | 1/76 | 1,4 | 0,10 | 76 | 310 | 50 | |
| 12200-00448 | DPZ | 1/89 | 1,8 | 0,11 | 89 | 310 | 50 | |
| 12200-00446 | DPZ | 1/114 | 2,2 | 0,14 | 114 | 310 | 50 |
