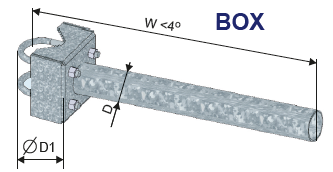

BOX
Clamp Bracket
Usage
These clamp brackets are used for mounting luminaires on various types of poles.
Surface Treatment
- Hot-dip galvanizing according to DIN EN ISO 1461
- Coatings according to the color shade tables of RAL
Design
- This clamp bracket can be freely attached to a pole with a diameter of 60-89 mm.
- Fixation is done using two steel clamps, which are included.
Certification and Compliance
The product, by its nature, complies with the set of standards ČSN EN 40 and meets the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
Alternative customization options available upon request.
Variants
| Kód | Cena | |||||||
|---|---|---|---|---|---|---|---|---|
| 12200-00340 | BOX | 300/60 | 3,5 | 0,26 | 60 | 300 | 60 | |
| 12200-00404 | BOX | 300/76 | 3,7 | 0,26 | 60 | 300 | 76 | |
| 12200-00410 | BOX | 300/89 | 3,8 | 0,27 | 60 | 300 | 89 | |
| 12200-00341 | BOX | 500/60 | 4,4 | 0,33 | 60 | 500 | 60 | |
| 12200-00405 | BOX | 500/76 | 4,5 | 0,34 | 60 | 500 | 76 | |
| 12200-00411 | BOX | 500/89 | 4,6 | 0,34 | 60 | 500 | 89 | |
| 12200-00342 | BOX | 750/60 | 5,4 | 0,42 | 60 | 750 | 60 | |
| 12200-00406 | BOX | 750/76 | 5,6 | 0,43 | 60 | 750 | 76 | |
| 12200-00412 | BOX | 750/89 | 5,7 | 0,43 | 60 | 750 | 89 | |
| 12200-00343 | BOX | 1000/60 | 6,4 | 0,51 | 60 | 1000 | 60 | |
| 12200-00407 | BOX | 1000/76 | 6,6 | 0,52 | 60 | 1000 | 76 | |
| 12200-00413 | BOX | 1000/89 | 6,7 | 0,52 | 60 | 1000 | 89 | |
| 12200-00344 | BOX | 1250/60 | 7,5 | 0,60 | 60 | 1250 | 60 | |
| 12200-00408 | BOX | 1250/76 | 7,7 | 0,61 | 60 | 1250 | 76 | |
| 12200-00414 | BOX | 1250/89 | 7,8 | 0,61 | 60 | 1250 | 89 | |
| 12200-00345 | BOX | 1500/60 | 8,5 | 0,69 | 60 | 1500 | 60 | |
| 12200-00409 | BOX | 1500/76 | 8,7 | 0,70 | 60 | 1500 | 76 | |
| 12200-00415 | BOX | 1500/89 | 8,8 | 0,70 | 60 | 1500 | 89 |
