UZM - Street, three-stage.

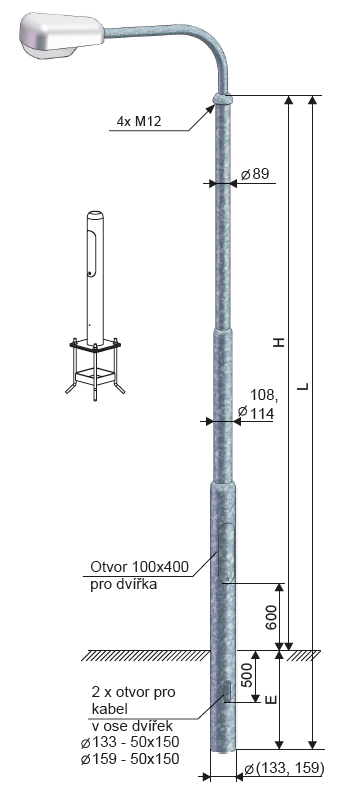

Non-footed lighting pole - Street, three-stage.

Types of brackets

UZB, UZD

1-4 arms depending on the height of the lighting pole.

Maximum arm extension length: 2,500 mm.

The number of arms and their extension length are determined based on the height of the lighting pole shaft and its overall load (including the weight and area of the brackets used).

Usage

Illumination of larger spaces and main urban roads.

Surface treatment

• Hot-dip galvanizing according to DIN EN ISO 1461 standard.
• Hot-dip galvanizing with top coating according to RAL color charts (DUPLEX SYSTEM).

Design

• The lower part of the shaft above the ground is equipped with a door-opening hole for mounting electrical equipment.
• Two holes for cable passage are made in the lower part of the shaft for insertion.

Lighting pole variations

• Inserted design.
• Inserted with protective sleeve.
• With flange.

Other offerings

• Lighting pole accessories.
• Lighting pole luminaires.
• Light sources.

Certification and compliance

The product corresponds to the set of standards ČSN EN 40 and meets the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
