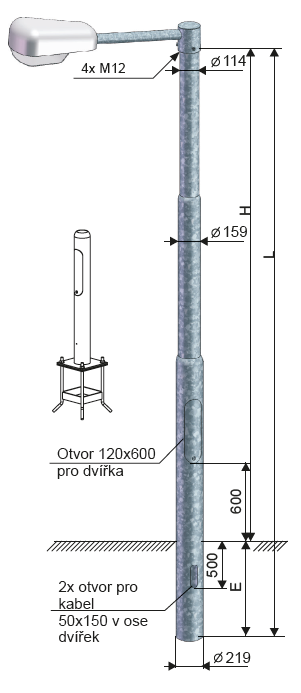

UD - Highway three-stage

Non-footed street lighting pole - street, three-stage

Types of brackets

J, UD

1-4 arm brackets depending on the height of the pole, with a maximum projection length of 3,000 mm

The number of bracket arms and their projection length are determined based on the height of the pole and its total load (weight and surface area of the bracket itself, including the used luminaires).

Usage

Lighting of larger areas, main urban roads, and highways

Surface treatment

• Hot-dip galvanizing according to DIN EN ISO 1461 standard
• Hot-dip galvanizing with top coating according to RAL tables (DUPLEX SYSTEM)

Design

• The lower part of the pole above the ground is equipped with an opening with doors for the installation of terminal blocks and electrical accessories.
• Two openings for cable passage are made in the lower part of the pole for insertion.

Poles marked with an asterisk (*) are divided and connected by inserting the upper part.

Pole variant

• Inserted without protective sleeve
• Inserted with protective sleeve
• With flange

Other offerings

• Pole accessories
• Pole luminaires
• Light sources

Certification and conformity

The product corresponds to the set of standards ČSN EN 40 and meets the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
