SRA - Manually folding lighting pole
Manually folding lighting pole
Types of brackets
SV aluminum single and double-arm brackets, maximum projection of 500mm, or the luminaire can be directly installed on the DPZ 1/60 mast.
Usage
Lighting of platforms, construction objects, public roads, sidewalks, and other areas generally inaccessible to handling equipment.
Surface treatment
- Hot-dip galvanizing according to DIN EN ISO 1461 standard
- Hot-dip galvanizing with top coating according to RAL color charts (DUPLEX SYSTEM)
- SV aluminum brackets without surface treatment

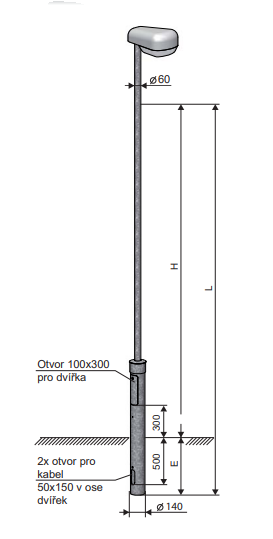

Design
- The lower part of the mast above the ground is equipped with a door opening for the installation of electrical accessories.
- Two openings for cable passage are made in the lower part of the mast for insertion.
- The mast can be manually folded by one person without a tilting device.
Variants of masts
- Embedded installation
- Embedded installation with protective sleeve
- With flange
Additional range
- Mast equipment
- Mast luminaires
- Light sources
Certification and compliance
The product meets the requirements of ČSN EN ISO 3834, ČSN EN 1090-1+A1. Product quality is controlled according to EN ISO 9001:2015.
Materials used
The product complies with the ČSN EN 1090-2+A1 standard.
Variants
Kód | Cena | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12100-00640 | SRA | 4-140/60 | Zn | 4000 | 4600 | 600 | 32 | 1,3 | 12 | ||||
12100-00760 | SRA | 4,5-140/60 | Zn | 4500 | 5100 | 600 | 34 | 1,4 | 10 | ||||
12100-00641 | SRA | 5-140/60 | Zn | 5000 | 5600 | 600 | 37 | 1,5 | 8 |
