SKO
Brackets for Lighting Poles
Types of Poles
SKO brackets are used for S, K, KL, KLA, KLB, KA, and KLL poles with a top diameter of 60 mm.
Surface Treatment
- Hot-dip galvanizing according to DIN EN ISO 1461 standard
- Hot-dip galvanizing with top coating according to RAL color charts

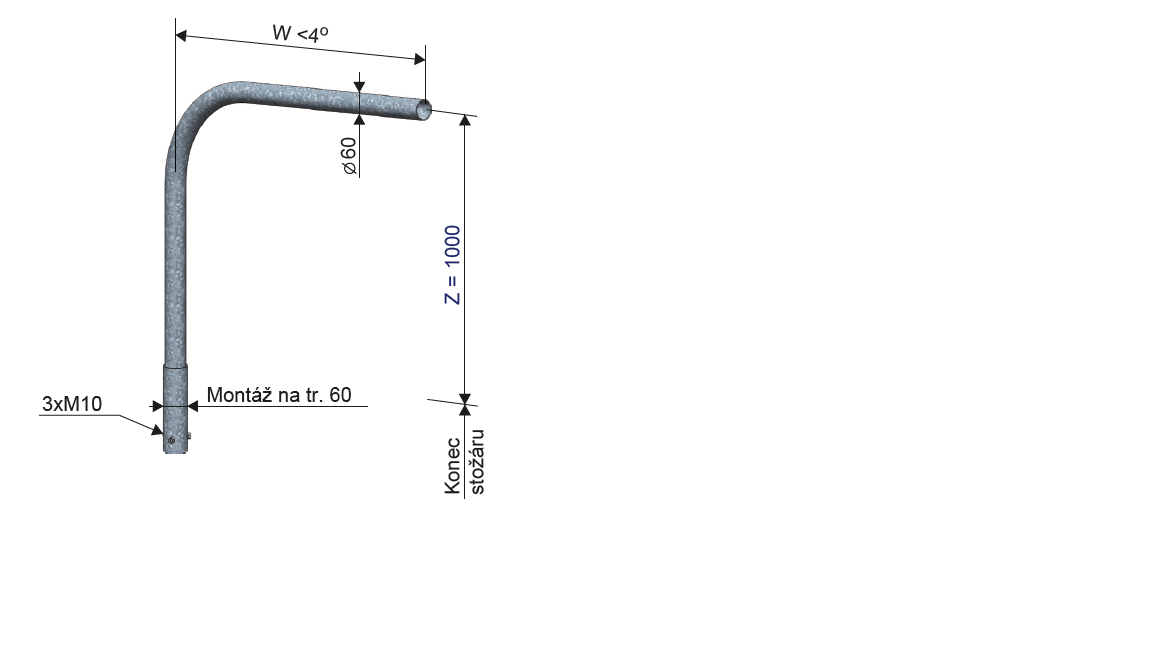

Design
- The bracket is a simple arched bracket that is mounted on the top section of the pole and fixed using 3 M10 screws.
- Single-arm bracket, with the length of the bracket depending on the height of the pole.
Certification and Compliance
The product corresponds to the set of standards ČSN EN 40 and meets the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to the EN ISO 9001:2015 standard.
Variants
| Kód | Cena | ||||||
|---|---|---|---|---|---|---|---|
| 12209-00645 | SKO | 1-500 | 7,4 | 0,28 | 500 | S, K, KL, KLA, KLB, KA, KLL | |
| 12209-00651 | SKO | 1-750 | 8,1 | 0,33 | 750 | S, K, KL, KLA, KLB, KA, KLL | |
| 12209-00343 | SKO | 1-1000 | 9,2 | 0,38 | 1 000 | S, K, KL, KLA, KLB, KA, KLL | |
| 12209-00652 | SKO | 1-1250 | 10,3 | 0,43 | 1 250 | S, K, KL, KLA, KLB, KA, KLL | |
| 12209-00623 | SKO | 1-1500 | 11,5 | 0,48 | 1 500 | S, K, KL, KLA, KLB, KA, KLL |
