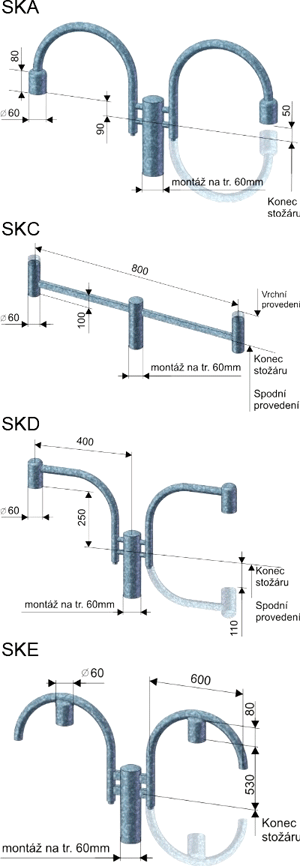

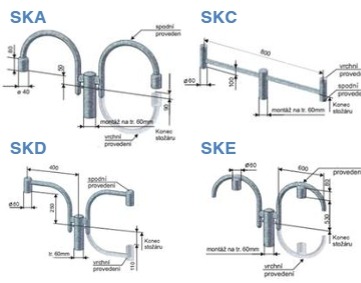

SKA, SKC, SKD, SKE

Luminaire brackets for lighting poles

Types of poles

SK type brackets are used for S, K, KA, KL, KLA, KLB type poles.

Surface treatment

• Hot-dip galvanizing according to DIN EN ISO 1461
• Coatings according to the color shades of RAL color charts

Design

• SKA, SKB, SKD, SKE brackets consist of several separate parts that are connected using plated M8 screws. The brackets are supplied in an assembled state.
• SKC bracket is welded, the ends of the brackets are equipped with plastic covers, and the cable entry into the bracket is protected by a plastic grommet. It is manufactured only in a two-arm 180-degree configuration.
• Depending on the orientation of the luminaire, they can be bottom or top mounted.

Certification and Compliance

The product meets the standards of ČSN EN 40 and complies with the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
