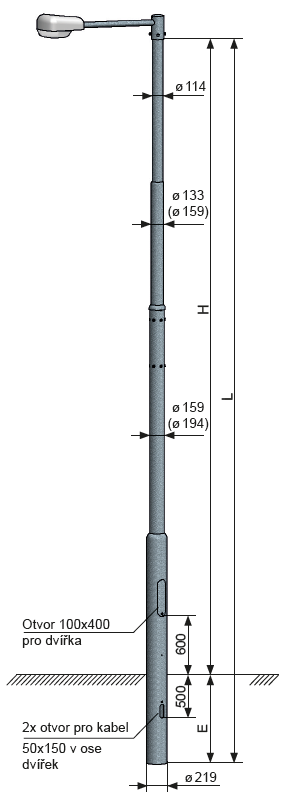

UDM UDN four-stage

• Non-base urban street lighting mast, four-stage
• Masts are supplied in sections and assembled by sliding the upper part into the lower part

Types of brackets

J for UDM masts UD for UDN masts

1-4 arm brackets depending on the mast height, with a maximum outreach length of 3,000mm.

The number of bracket arms and their outreach length is determined based on the mast height and its total load (weight and surface area of the bracket itself, including used luminaires).

Usage

Lighting large spaces, main urban roads, and highways

Surface treatment

• Hot-dip galvanizing according to DIN EN ISO 1461
• Hot-dip galvanizing with top coating according to RAL tables (DUPLEX SYSTEM)

Design

• The lower part of the mast above the ground is equipped with a door for installing clamps and electrical accessories.
• Two holes for cable passage are made in the lower part of the mast for inserting cables.
• The masts are supplied in sections and assembled by sliding the upper part into the lower part.

Mast variations

• Inserted design
• Inserted design with protective sleeve
• With flange

Other offerings

• Mast equipment
• Mast luminaires
• Light sources

Certification and compliance

The product corresponds to a set of standards ČSN EN 40 and fulfills the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
