GM - Non-baseplate three-stage

Non-baseplate lighting pole - three-level.

Types of brackets

G

1-4 arm brackets depending on the height of the pole, or the luminaire can be directly installed on the pole. The number of arm brackets and their extension length is determined based on the height of the pole and its overall load (weight and surface area of the bracket, including the used luminaires).

Usage

Lighting of medium-sized areas, secondary roads, and main urban roads.

Surface treatment

• Hot-dip galvanizing according to DIN EN ISO 1461
• Hot-dip galvanizing with a top coating according to RAL color charts (DUPLEX SYSTEM)

Design

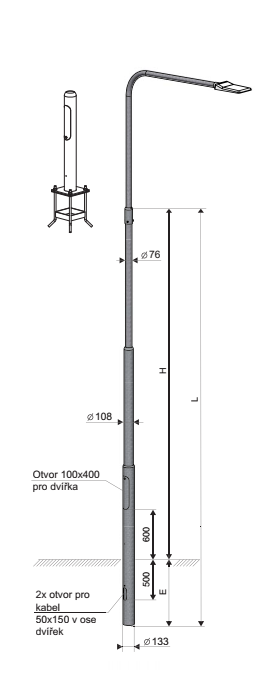

• The lower part of the pole above the ground is equipped with an opening with doors for the installation of electrical accessories.
• Two openings for cable passage are made in the lower part of the pole for embedding.

Pole variations

• Embedded design Embedded design with protective sleeve With flange
• Additional range
• Pole accessories Pole luminaires Light sources

Certification and compliance

The product corresponds to the set of standards ČSN EN 40 and meets the requirements of ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015
