STILET
Cone-shaped lighting column designed for illuminating gardens, parks, pedestrian zones, secondary roads, and parking lots.
Types of brackets
SK, SD (1-2-armed) 180° with a maximum outreach length of 1000mm or the luminaire can be directly installed on the column.
Usage
Lighting of gardens, parks, pedestrian zones, and secondary roads.
Surface treatment
Hot-dip galvanization according to DIN EN ISO 1461. Hot-dip galvanization with a top coating according to RAL color charts (DUPLEX SYSTEM).

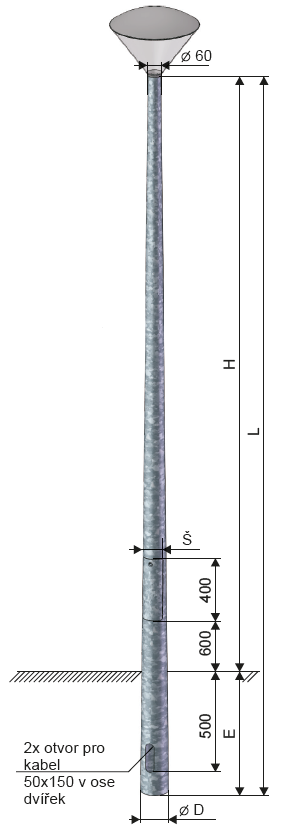

Design
The lower part of the column above the ground is equipped with a door for mounting a terminal block and electrical accessories. Two openings for cable passage are made in the lower part of the column for insertion.
Column variations
- Embedded design
Additional offer
- Column equipment
- Column luminaires
- Light sources
Certification and compliance
The product corresponds to a set of standards ČSN EN 40 and meets the requirements according to ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
Variants
| Kód | Cena | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 12100-00719 | 60/40 | žárový zinek | 4 000 | 4 800 | 800 | 32 | 1,32 | 40 | |
| 12100-00720 | 60/50 | žárový zinek | 5 000 | 5 800 | 800 | 41 | 1,69 | 40 | |
| 12100-00721 | 60/60 | žárový zinek | 6 000 | 7 000 | 1 000 | 53 | 2,18 | 40 | |
| 12100-00722 | 60/70 | žárový zinek | 7 000 | 8 200 | 1 200 | 67 | 2,74 | 40 | |
| 12100-00723 | 60/80 | žárový zinek | 8 000 | 9 200 | 1 200 | 79 | 3,23 | 40 | |
| 12100-00724 | 60/100 | žárový zinek | 10 000 | 11 500 | 1 500 | 110 | 4,48 | 40 |
