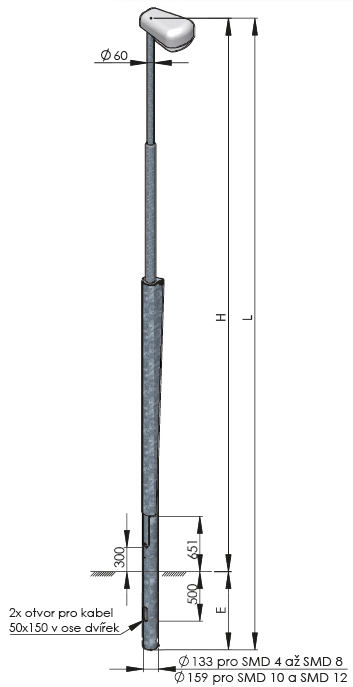

SMD - Folding lighting pole
Folding steel lighting mast
Types of brackets
SV 1 and 2-arm brackets, with a maximum extension of 1000mm, or the luminaire can be directly mounted on the mast
Usage
Platforms of railway stations and stops Station areas Railway tracks Construction sites Public roads, sidewalks and other places generally inaccessible to handling equipment
The mast can be folded by one person using a rope folding device.
Surface treatment
- Hot-dip galvanizing according to DIN EN ISO 1461 standard
- Hot-dip galvanizing with top coating according to RAL color charts (DUPLEX SYSTEM)
- Stainless steel parts without surface treatment
Certification and compliance
The product meets the requirements of ČSN EN ISO 3834, ČSN EN 1090-1+A1 The quality of the product is controlled according to EN ISO 9001:2015. The product complies with the ČSN EN 1090-2+A1 standard.
Variants
| Kód | Cena | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 12100-00706 | SMD | 4 V | žárový zinek | 4 000 | 4 800 | 800 | 61 | 2,8 | 30 | |
| 12100-00707 | SMD | 5 V | žárový zinek | 5 000 | 5 800 | 800 | 72 | 3,4 | 30 | |
| 12100-00708 | SMD | 6 V | žárový zinek | 6 000 | 6 800 | 800 | 84 | 4 | 30 | |
| 12100-00709 | SMD | 8 V | žárový zinek | 8 000 | 9 000 | 1 000 | 136 | 5,5 | 36 | |
| 12100-00710 | SMD | 10 V | žárový zinek | 10 000 | 11 200 | 1 200 | 201 | 8,2 | 40 | |
| 12100-00711 | SMD | 12 V | žárový zinek | 12 000 | 13 500 | 1 500 | 278 | 9,7 | 40 | |
| 12100-00712 | SMD | 4 P | žárový zinek | 4 000 | 4 000 | KR 240 | 62 | 2,6 | 30 | |
| 12100-00713 | SMD | 5 P | žárový zinek | 5 000 | 5 000 | KR 240 | 73 | 3,2 | 30 | |
| 12100-00714 | SMD | 6 P | žárový zinek | 6 000 | 6 000 | KR 240 | 85 | 3,8 | 30 | |
| 12100-00715 | SMD | 8 P | žárový zinek | 8 000 | 8 000 | KR 300 | 147 | 5,4 | 36 | |
| 12100-00716 | SMD | 10 P | žárový zinek | 10 000 | 10 000 | KR 300 | 205 | 7,9 | 40 | |
| 12100-00717 | SMD | 12 P | žárový zinek | 12 000 | 12 000 | KR 400 | 295 | 9,5 | 40 |
