KN

Decorative baseless lighting pole

Types of brackets

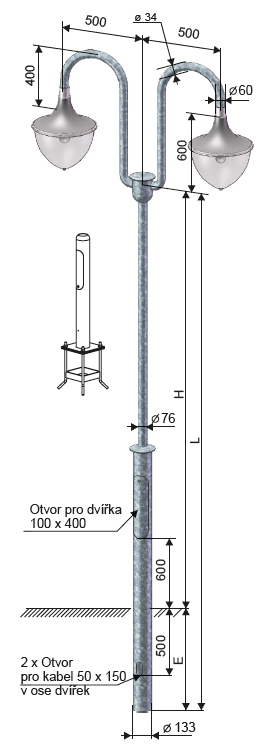

A two-arm bracket is an integral part of the pole - as shown in the illustration.

Supplied for a luminaire with a mounting diameter of 60 or 43 mm.

Usage

Lighting for gardens, parks, pedestrian zones, and secondary roads.

Surface treatment

• Hot-dip galvanizing according to DIN EN ISO 1461
• Hot-dip galvanizing with top coating according to RAL tables (DUPLEX SYSTEM)

Design

• The lower part of the pole above the ground is equipped with a door for mounting electrical accessories.
• Two openings for cable passage are made in the lower part of the pole for insertion.

Pole variations

• Inserted design
• Inserted design with protective sleeve
• With flange

Additional assortment

• Pole accessories
• Pole luminaires
• Light sources

Certification and compliance

The product, by its nature, complies with the set of standards ČSN EN 40 and meets the requirements according to ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
