KD

Decorative baseless lighting pole

Types of brackets

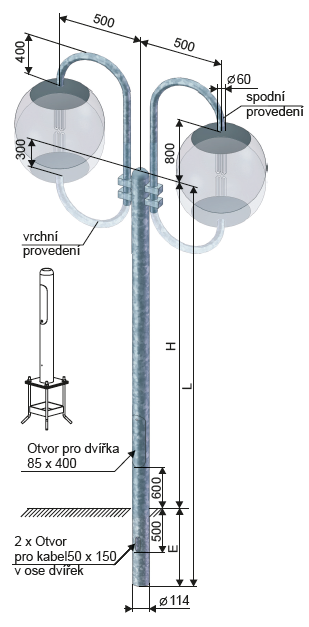

A two-arm bracket is an integral part of the pole - as shown in the illustration.

Option for upper and lower design

In addition, a 1-4-arm bracket can be used.

Usage

Lighting for gardens, parks, pedestrian zones, and secondary roads.

Surface treatment

Hot-dip galvanizing according to DIN EN ISO 1461

Hot-dip galvanizing with top coating according to RAL tables (DUPLEX SYSTEM)

Design

The lower part of the pole above the ground is equipped with a door for mounting electrical accessories.

Two openings for cable passage are made in the lower part of the pole for insertion.

Pole variations

Inserted design

Inserted design with protective sleeve

With flange

Additional assortment

Pole accessories

Pole luminaires

Light sources

Certification and compliance

The product, by its nature, complies with the set of standards ČSN EN 40 and meets the requirements according to ČSN EN ISO 3834. The quality of the product is controlled according to EN ISO 9001:2015.
